Sub-Zero Water Filter Replacement, Series by Series

Replacing a Sub-Zero water filter is a five-minute job once you know where yours hides, and on most built-ins it hides behind the upper grille with the rest of the mechanicals. Change it annually, use a genuine OEM cartridge, then purge the line for a few minutes — that last step is the one people skip, and it’s why half the “no water after changing the filter” calls we get aren’t a fault at all.

The manufacturer publishes this as a scatter of per-model fragments, which is fine if you know exactly which document matches your cabinet and useless if you don’t. Here’s the consolidated version, plus the parts our techs actually get called about afterward.

First: does your cabinet even have one?

Not every Sub-Zero does, and this trips people up before they start.

Filtration exists only where there’s water going somewhere — a dispenser or an ice maker. An all-refrigerator or all-freezer column with no ice has no filter, and no amount of searching behind the grille will produce one.

The dial-era 500 series (1980s–1994) generally predates built-in filtration altogether. If a cabinet from that generation has filtered water, an installer plumbed an external inline filter into the supply line, usually under the sink or behind the unit — that’s the one you’d replace, and it isn’t a Sub-Zero part.

From the 600 and 700 series forward, cabinets with dispensers or ice makers carry a replaceable cartridge. The BI built-in line (1999–2014) is where we do most of this work simply because it’s the biggest legacy population in SoCal kitchens, particularly the dispenser models. Current Classic, Designer and PRO cabinets with ice or water all use a cartridge, as do the integrated drawer combinations with ice and the undercounter ice makers — though the latter frequently run an external inline filter rather than an internal cartridge.

If you’re unsure what you have, the model plate is inside the fresh-food compartment and the series pages will match it.

Where the filter lives

Two arrangements cover nearly every cabinet we open.

Behind the upper grille. The most common by a wide margin on built-ins. Lift or unscrew the grille and the cartridge is there with the mechanicals, seated in a housing you turn to release. If you’ve already pulled this grille to vacuum the condenser — and you should have, per our condenser cleaning guide — you’ve already seen the spot.

Inside the fresh-food compartment. Some generations put the cartridge in the cabinet interior instead, typically in an upper corner or along the ceiling of the compartment. If the grille turns up nothing, look inside before you assume you don’t have one.

External inline. Common on undercounter ice makers and on older cabinets that were retrofitted. This is a canister in the supply line, not part of the appliance, and it lives wherever the installer found room.

Because the exact position varies by generation and configuration, the honest instruction is: pull the grille first, check the interior second, follow the supply line third. One of the three will find it. If none do, your cabinet doesn’t have filtration.

The replacement, step by step

1. Shut off the water supply. Find the valve feeding the refrigerator and close it. On many installs this is a stop valve under the adjacent sink or in the cabinet next to the unit. Skipping this is how people end up with a wet floor.

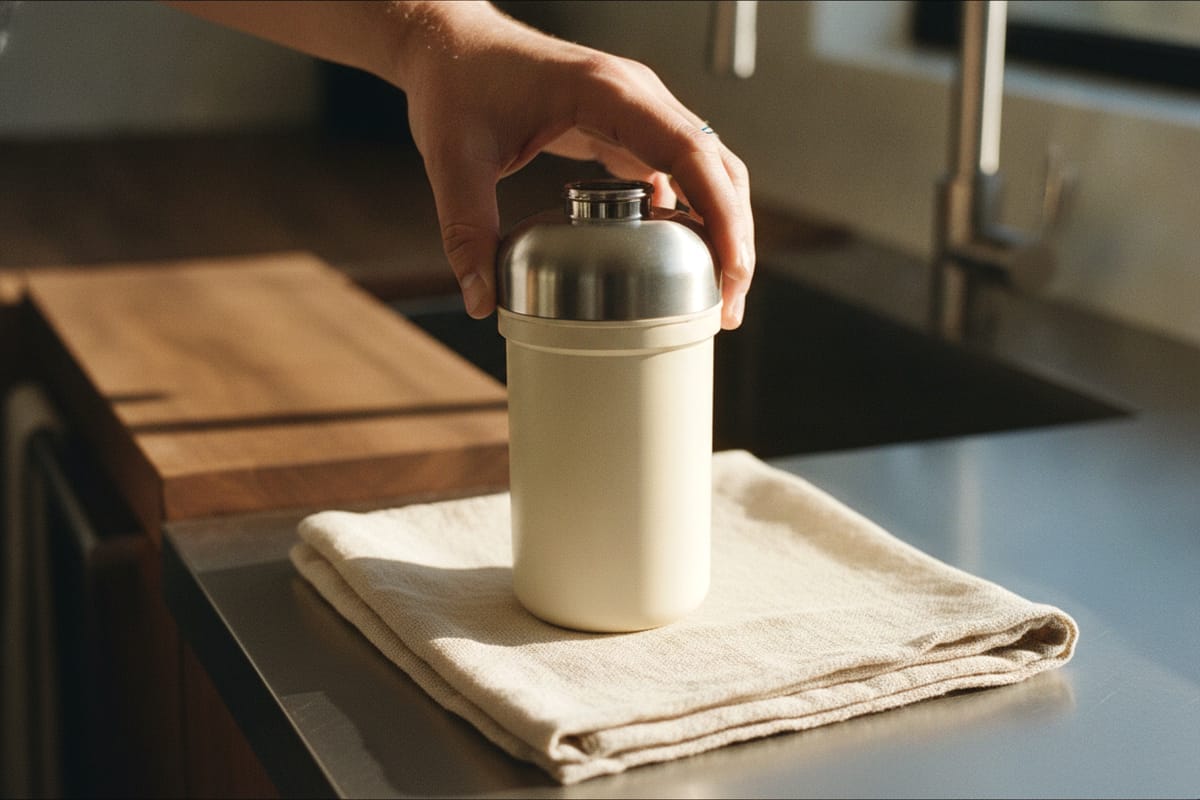

2. Have a towel ready. Even with the supply closed, the cartridge holds water and the housing will drip when it comes free. This is normal and it’s about a cupful, not a flood.

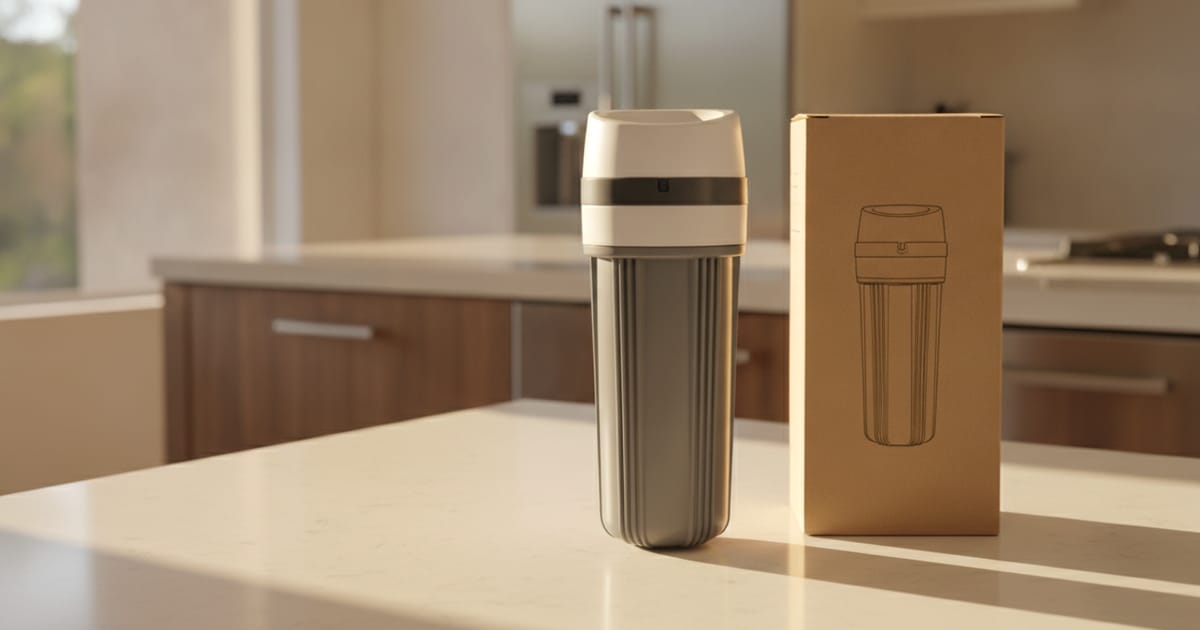

3. Release the old cartridge. Most housings work on a quarter-turn: rotate the cartridge until it unseats, then draw it straight out. It should not require force. If it feels stuck, you’re likely turning the wrong way rather than dealing with a seized part.

4. Seat the new one. Line it up, push it home, and turn until it locks. You should feel it seat positively. A cartridge that’s in but not locked is the classic cause of a slow weep that shows up as a puddle two days later.

5. Reopen the supply and check for leaks. Watch the housing for a full minute before you close anything up. Dry is dry; a bead forming means it isn’t seated.

6. Purge the line. Run the dispenser for two to three minutes. It will sputter and spit at first as trapped air clears — that’s expected. Keep going until flow is steady and the water runs clear. If your cabinet makes ice, discard the first two or three batches.

7. Replace the grille and reset the indicator.

Clearing the filter indicator

The reminder is a timer, not a sensor — it counts elapsed use and has no idea whether you actually changed anything. Which means it needs clearing manually, and how you do that depends on your panel era.

On modern electronic displays (Classic, Designer, PRO) there’s a filter entry in the settings or status area of the screen; confirm the change there and the counter restarts.

On older indicator-light panels (600, 700, BI) it’s typically a press-and-hold on a control until the light acknowledges. The specific control varies across those generations, so if the obvious candidate doesn’t respond, don’t force it.

If the indicator refuses to clear by either route, a power cycle at the breaker will drop it — the same procedure as our reset guide. Only do this after actually replacing the cartridge, though. Clearing a reminder you haven’t earned is how a filter ends up three years old.

OEM versus the cheap ones — our field position

We’re not precious about aftermarket parts in general. On filters we are, and it’s from being called back.

The housing on these cabinets seals against a specific cartridge geometry. Third-party cartridges are built to be close enough, and close enough is exactly where slow leaks live — a weep that doesn’t show up on day one but soaks the cabinet base over a fortnight, or a seal that holds pressure until a thermal cycle and then doesn’t. The other pattern we see is flow: a cartridge with the wrong internal restriction gives you a dispenser that’s gone weak and an ice maker producing small cubes, and the owner spends weeks chasing a fault that’s sitting in the filter housing.

A genuine OEM cartridge costs more than a knockoff and less than one service call to find out why the cabinet base is wet. That’s the entire argument.

When it’s not the filter

Plenty of what gets blamed on filters isn’t.

No water at all after a change is usually trapped air, and purging fixes it. If purging doesn’t, and the cartridge is properly seated with the supply open, the problem is upstream — the line, the valve, or a frozen supply tube. Our water dispenser page walks those causes in order.

Ice that’s small, hollow, or slow for the first day is normal air-in-the-line behavior. Still wrong 24 hours later and you’re looking at fill volume, supply pressure, or the ice maker itself, covered on our ice maker page.

Water that still tastes wrong with a fresh OEM cartridge points at the supply rather than the appliance, or at ice that’s been sitting long enough to pick up freezer odours. Dump the bin and give it a couple of days of fresh production before judging.

One safety note, brief because this job barely touches it: cut the breaker before removing any grille panel, since the compartment behind it carries line voltage and capacitors in the compressor circuit can hold a charge after power is off. And nothing about a filter change should ever take you into the refrigeration circuit — sealed-system work is EPA-regulated and requires certified recovery equipment.

Filter changes sit on the annual line of our maintenance checklist alongside the listening test and the door check. If yours is leaking, flowing weak, or you’d simply rather not pull the grille, tell us the model and we’ll handle it — we’re an independent Sub-Zero specialist across Southern California, and if your cabinet is still inside the manufacturer’s warranty we’ll tell you to call Sub-Zero’s factory-authorized service and have it covered instead.
